THE TRUTILL
YOUR ONE PASS TILLAGE SOLUTION

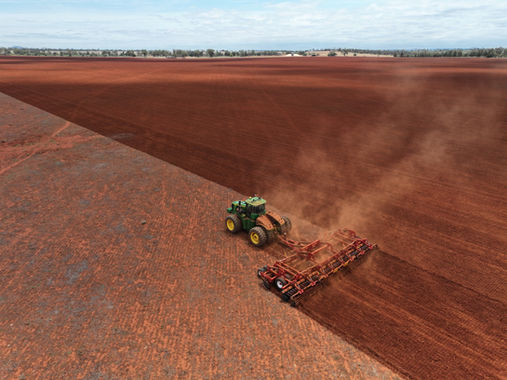

Tillage plays a crucial role in farming, particularly in facilitating soil preparation in a demanding Australian environment. The AusCut TruTill is engineered to be your true-one pass tillage solution that is built with a heavy duty deep tilling disc that prepares your soil effortlessly.
Ideal for your broadacre cereal cropping needs, TruTill features a 26-inch disc, with an optional upgrade of a 28 inch disc, that has the capacity to penetrate up to 250mm deep into the soil. Complete with its finishing rollers, it leaves your soil in an optimal condition for better moisture retention and seedbed preparation to maximize cropping yields.
The twin disc arm coupled with two adjustable toolbar systems provides an unparallel soil cutout ensuring maximum weed control and a level seedbed. The rubber torsion mounted jump arm system prevents and protects your machine by absorbing shock and stress. The TruTill ensures high capacity residue management due to its high toolbar clearance and disc row spacing even when working paddocks with high stubble loads. It delivers level and even soil finish making it ideal for irrigation efficiency of summer crops like cotton and sorghum along with grazing crop preparation and while working soil with lime, gypsum and clay.
ENGINEERED FOR YOUR SUCCESS
Twin discs jump arm system
Delivers positive controlled soil cutout position with excellent ground following for consistent depth and accuracy.
HD Tyres
The heavy duty and high capacity transport tyres can handle wear a lot better than a standard ag tyre.
High trash flow
Designed for ultimate trash clearance and smooth operation even in high trash loads.
Heavy bearings
Equipped with the heaviest bearings in the market to reduce wear and increase longevity of the machine.
Adjustable toolbars
Easily adjust the position of toolbars to ensure full soil cutout tailored to your needs
Powder coated finish
Enhances durability for an extended machine life with minimal maintenance by protecting the machine against rust and wear.
TRUTILL SPECIFICATIONS
MODEL | DESCRIPTION | TRANSPORT WIDTH | WEIGHT | NUMBER OF DISCS | DISC SIZE | OPERATING WIDTH | TRACTOR MIN HP |
|---|---|---|---|---|---|---|---|
52R30 | Trailing Rigid Tillage System | 3400mm | 3900kg | 25 | 660X6mm | 3000mm | 140hp |
52R35 | Trailing Rigid Tillage System | 3800mm | 4100kg | 29 | 660X6mm | 3500mm | 150hp |
52R40 | Trailing Rigid Tillage System | 4400mm | 4400kg | 33 | 660X6mm | 4000mm | 170hp |
52T40 | Trailing Folding Tillage System | 3400mm | 6800kg | 33 | 660X6mm | 4000mm | 200hp |
52T50 | Trailing Folding Tillage System | 3400mm | 7000kg | 41 | 660X6mm | 5000mm | 250hp |
52T60 | Trailing Folding Tillage System | 3400mm | 7700kg | 49 | 660X6mm | 6000mm | 290hp |
52T65 | Trailing Folding Tillage System | 3400mm | 8300kg | 52 | 660X6mm | 6500mm | 320hp |
As part of AusCut's commitment to customer-centric design, the design and specifications are subject to change without notice.
* Product weight will vary depending on configuration and options.
TRUTILL PHOTO GALLERY
TRUTILL FEATURES
-
Twin disc rubber torsion jump arm system
-
Powder coated finish
-
Heavy duty tyres
-
High toolbar clearance
-
Twin disc arm with adjustable toolbar
-
Finishing rollers
TRUTILL OPTIONS
-
28inch discs (710mm)
-
Double rear roller
-
Oversize kit
-
Hydraulic roller adjustment
WHY CHOOSE THE AUSCUT TRUTILL
The Auscut TruTill is one-of-a-kind tilling solution designed especially to meet the broadacre cereal cropping needs of the Australian farmers. It is carefully constructed with its heavy duty design and stands out with its deep tilling power for ultimate weed control and lime incorporation due to its larger discs, adjustable toolbar and deep row spacing.
Here are three compelling reasons why the AusCut TruTill is for you:
Twin Disc Jump arm
Unlike a single disc jump arm that could wobble and affect ground control, the TruTill twin disc jump arm stays aligned, allowing it to move straight into the soil delivering deep and accurate tillage.
High toolbar clearance
Provides high-capacity residue management due to its high toolbar clearance and deep row spacing for uninterrupted operation in high residue fields.
For farmers by farmers
The TruTill is designed and manufactured for farmers with years of expertise and feedback from the farmers in need for a heavy duty one pass tilling solution.
